Product Description

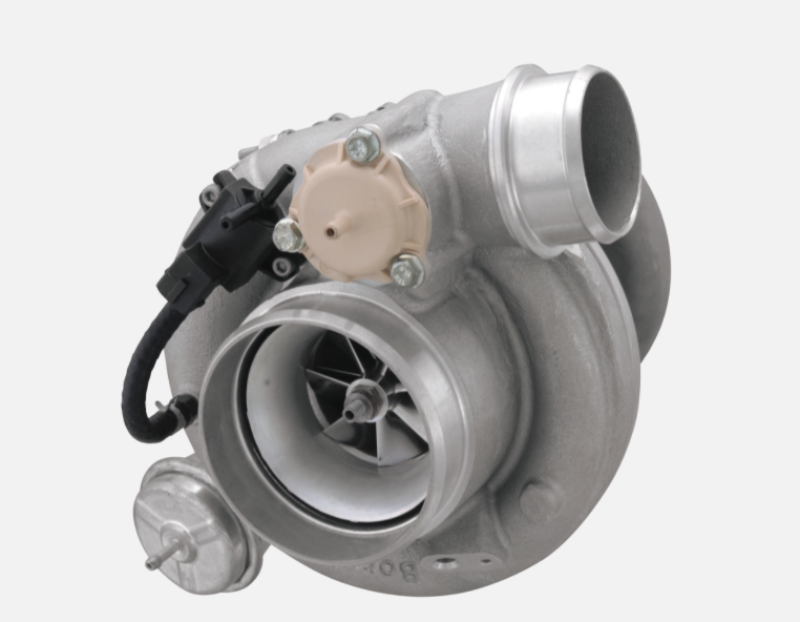

EFR 7163 Turbocharger
EFR 7163 is an excellent turbocharger for drift, road racing and street driven applications. The 7163 delivers incredibly fast spool and response while working well on stock and heavily modified engines. The 71mm OD compressor has a 57mm inducer and there is potential for 550hp - unheard of for this size compressor wheel. The low inertia 63mm Gamma-Ti turbine wheel is the optimal match for the 71mm FMW compressor wheel and is capable of 45+psi boost. This turbo uses the mid-size EFR ported-shroud compressor housing, great for fitment in cramped engine bays. Ideal for use in single turbo applications for the 300-550hp range, or as twin turbo applications 650-1000+hp. Ceramic Ball Bearing only, watercooling mandatory
Compressor Specifications
- Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
- Compressor Wheel OD (exducer): 71mm
- Compressor Wheel Inducer: 57mm
- Compressor Housing: 3" inlet, 2.0" hose coupler outlet
- Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
- Connections:
- Inlet: 3.0" Hose Coupler
- Outlet: 2.0" Hose Coupler w/ integrated Vband option
Turbine Specifications
- Turbine type: Low Inertia Gamma-Ti Turbine Wheel
- Turbine Wheel OD: 63mm
- Stainless Steel Investment cast Housing
The EFR 7163 is available in (3) different turbine housing configurations:- 0.85 A/R T25 undivided (Internal WG)
- 0.85 A/R V-Band In/Out (Internal WG)
- 0.80 A/R T4 twinscroll (External WG)
- Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
Features
- Dual Row Ceramic Ball Bearings - lowest friction and fastest spool/response, most extreme durability, built-in oil control orifice - (aka oil restrictor) **no restrictor can be used with EFR turbos
- Watercooled Center Section - watercooling mandatory, 14mm banjo bolts
- Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
- Boost Control Solenoid Valve Integrated to Compressor Housing
- Integrated Speed Sensor mounting provisions
