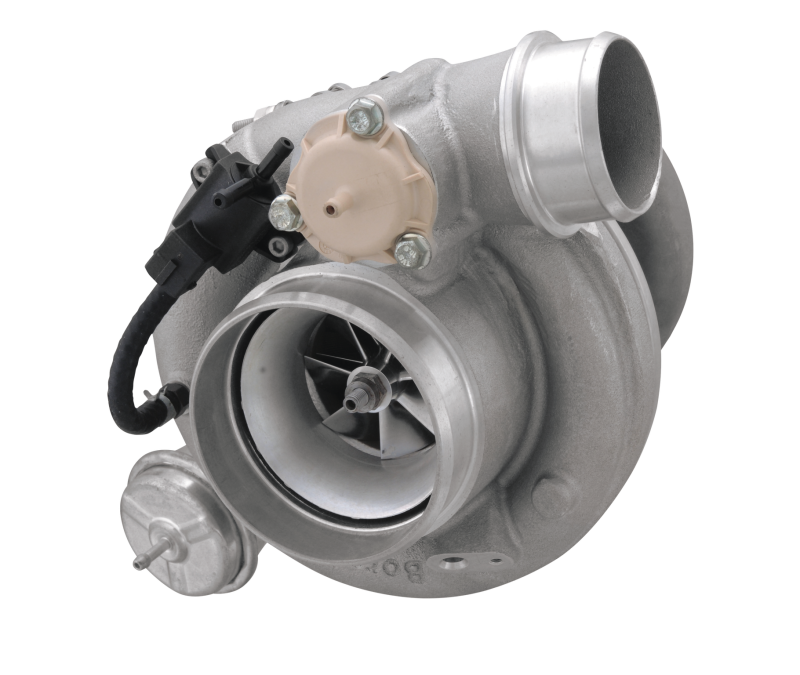

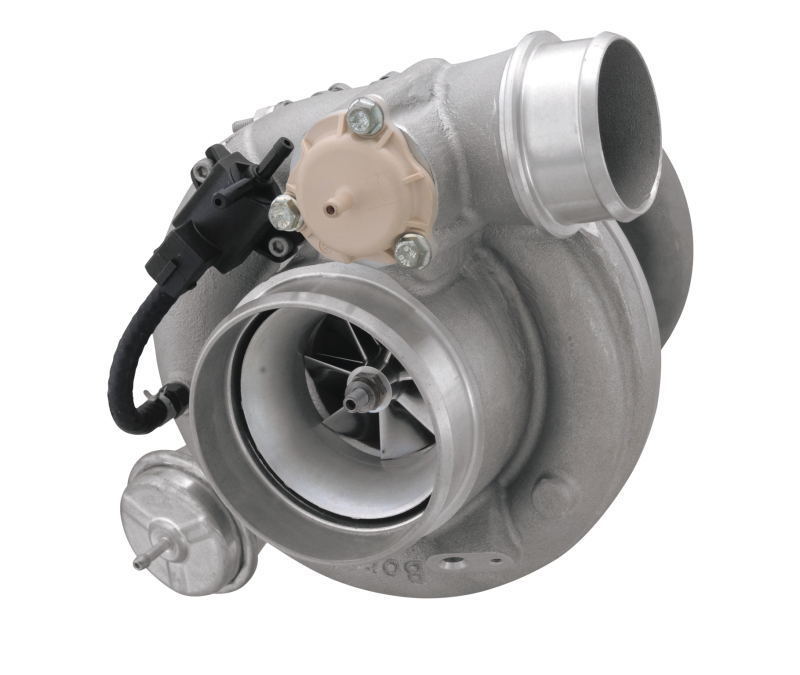

EFR 8374 Turbocharger
EFR 8374 is engineered to support big power levels yet spool fast enough for professional time attack teams. The 74mm Gamma-Ti turbine wheel is the optimal match for the 62.6mm inducer / 83mm exducer FMW compressor wheel and is capable of 79lb/min airflow and 45+psi boost. This is one of the most exciting turbos in the EFR lineup for the high-power addicts. This turbo has the largest EFR compressor housing and is ideal for use in single turbo applications for the 500-800hp range, or as twin turbo applications >1400+hp. Ceramic Ball Bearing only, watercooling optional (recommended)
Compressor Specifications
- Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
- Compressor Wheel OD (exducer): 83mm
- Compressor Wheel Inducer: 62.6mm
- Max Flow Rate: 79 lb/min
- Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
- Compressor Housing Connections:
- Inlet: 4" Ported Shroud Hose Coupler
- Outlet: 2.5" Hose Coupler w/ integrated Vband option
Turbine Specifications
- Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
- Turbine Wheel OD: 74mm
- Stainless Steel Investment cast Housing - The EFR 8374 is available in (3) different turbine housing configurations:
- 0.83 A/R T3 undivided (Internal WG)
- 0.92 A/R T4 twin scroll (Internal WG)
- 1.05 A/R T4 twin scroll (external WG)
- 1.45 A/R T4 twin scroll (external WG)
- Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
Features
- Dual Row Ceramic Ball Bearings - lowest friction and fastest spool/response, most extreme durability, built-in oil control orifice - (aka oil restrictor) **no restrictor can be used with EFR turbos
- Watercooled Center Section - watercooling is recommended, 14mm banjo bolts
- Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
- Boost Control Solenoid Valve Integrated to Compressor Housing
- Integrated Speed Sensor mounting provisions
