Turbocharger Servicing

Did you know that we also service and upgrade all makes and models of Turbochargers? Our facility was designed from the ground up to service turbochargers with the type of quality you would expect on a manufacturing level.

Contact our sales and service team for more information at (813)-443-0531.

Comments

EFR-9180

BorgWarner

$2,266.90
SKU:
179356
Size chart
Quantity:

Need Some Advice?Speak to one of our gearheads

Product Description

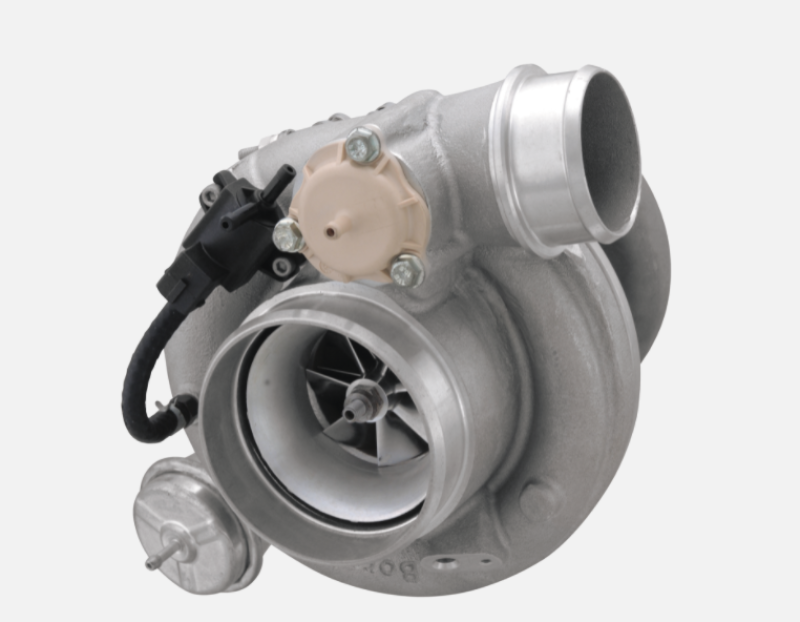

Borg Warner EFR 9180 Turbocharger

EFR 9180 is the biggest, baddest, highest flowing turbo in the EFR family. Capable of a remarkable 94lb/min airflow and stable at very high boost levels, the 91mm OD compressor measures 67.7mm inducer and is a 7 blade FMW compressor. This turbo will redefine what 67mm turbos are capable of. After receiving requests from many high power enthusiasts and drag racers restrained to a 67mm inducer, there was a clear need for 1000hp capable turbos that still provide good spool and response. Using the high flowing 1.05 a/r Twinscroll T4 turbine housing is the most efficient way to run this as a single turbocharger. If twin turbos will be run, the .83 a/r or 1.05 a/r can be used, depending on manifolds and space constraints. Ideal for use as single turbo applications in the 700-1000hp per turbo range, or as very high power twin turbo applications >1000-1700+hp. Available with .83 a/r undivided T3 internal WG or 1.05 a/r divided twinscroll T4 housings (external WG). Ceramic Ball Bearing only, watercooling optional (recommended)

Compressor Specifications

  • Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
  • Compressor Wheel OD (exducer): 91mm
  • Compressor Wheel Inducer: 67.7mm
  • Max Flow Rate: 94 lb/min
  • Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
  • Compressor Housing Connections:
    • Inlet: 4" Ported Shroud Hose Coupler
    • Outlet: 2.5" Hose Coupler w/ integrated Vband option

Turbine Specifications

  • Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
  • Turbine Wheel OD: 80mm
  • Stainless Steel Investment cast Housing
    The EFR 9180 is available in (4) different turbine housing configurations:
    • 0.83 A/R T3 Undivided (Internal WG)
    • 0.92 A/R T4 Twin Scroll (Internal WG)
    • 1.05 A/R T4 Twin Scroll (external WG)
    • 1.45 A/R T4 Twin Scroll (external WG)
  • Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
