Evo X Garrett GTX3076R Turbo Kit

Garrett Turbo

Discontinued
SKU:
788550-5007S
Size chart
Quantity:

Need Some Advice?Speak to one of our gearheads

Product Description

DISCONTINUED
Here is a comparable upgrade that we offer: https://www.theboostlab.com/evo-x-td06sl2-20g-billet-turbocharger/

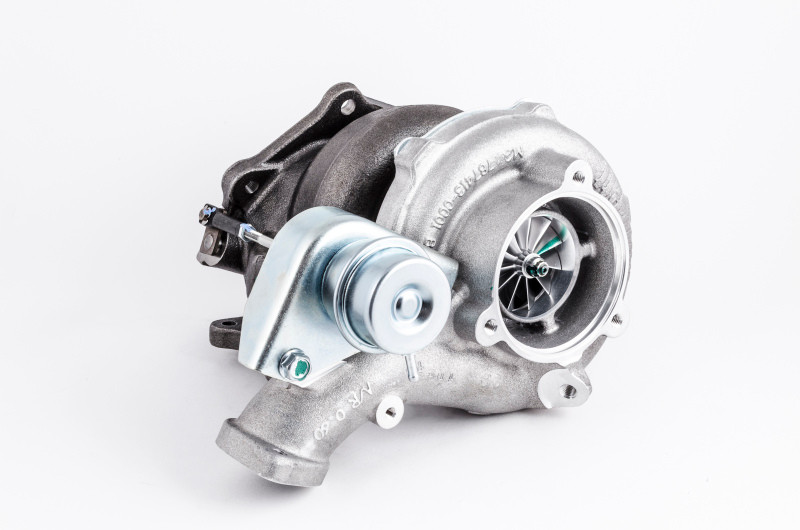

Evo X Garrett GTX3076R Turbo Kit

Model Years: 2008 +

Engine: 2.0L 4B11 Turbocharged Inline 4

The Garrett® Evo X Turbo Upgrade allows you to push your AWD, rally-bred, tire-smoking monster up to an estimated 640 HP with the Garrett® GTX3076R. This turbo has been meticulously designed to be a bolt-on upgrade with no major modifications or guesswork required.

The Garrett® Evo X Turbo Upgrade features a specially designed twin-scroll turbine housing that mates up directly to the Evo X's stock exhaust manifold as well as the stock exhaust down pipe to allow for aftermarket exhausts to be used without worrying about fitment.

The turbine housing allows for the retention of the stock exhaust heat shield for better temperature control as well as a stealth look.

The ported shroud compressor housing reduces the occurrence of surge during operation and mates directly to the intake piping as well as the stock outlet position.

The Garrett® patented dual ball bearing center housing is standard on both turbocharger options for unmatched power handling and unbeatable response.

The Garrett® Evo X Turbo Upgrade is a powerful, yet highly streetable enhancement to an already potent car. Initial production units are sold without an upgraded wastegate actuator. The stock actuator or an aftermarket solution designed for the Evolution X stock turbo will fit.



GTX3076R
PN 788550-2

Horsepower (estimated)

640

Compressor Wheel Inducer

58.0mm

Compressor Wheel Exducer

76.6mm

Compressor Wheel Trim

58

Compressor Housing A/R

0.60

Turbine Wheel Diameter

60.0mm

Turbine Housing A/R

0.73 or .94



Kit Contains:

  • Garrett GTX3076R dual ball bearing application specific turbocharger
  • Inlet elbow
  • Oil drain line
  • Water lines
  • Gaskets and necessary hardware
  • Installation Instructions
