S300SX3-66 .91 A/R (Straight Compressor Outlet)

BorgWarner

$948.13
SKU:
177275
Size chart
Quantity:

Need Some Advice?Speak to one of our gearheads

Product Description

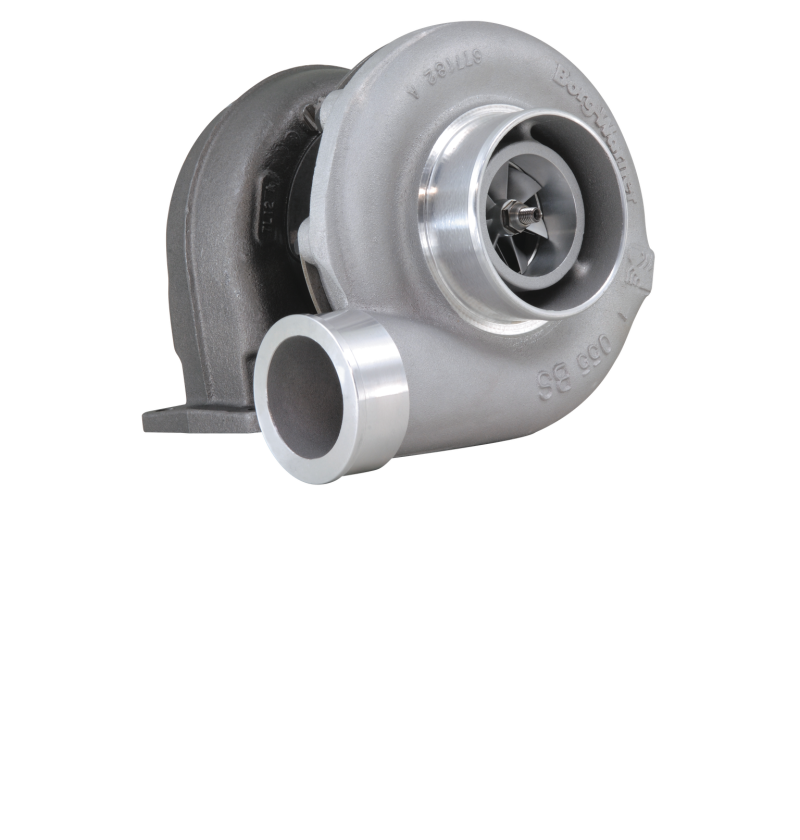

Borg Warner S300SX3-66 S366 .91 A/R T4 Turbocharger (Straight Compressor Outlet) BorgWarner Airwerks S300SX3-66, S366, S300 91/79 with .91 A/R Twin Scroll Turbine Housing.

Rated at 500 to 830 HP

Compressor flow is rated at over 82lb/min

This is the largest of the S300SX3 midframe turbochargers from BorgWarner Airwerks line.



Wheel Dimensions:
Compressor: 66 mm inducer / 91.4mm exducer, with exclusive Extended Tip Technology.
Turbine: 80 mm inducer / 73 mm exducer. Cast in Inconel 713 for high-temperature operation.
Housings: Compressor: Large 4.00 ported anti-surge air inlet / 3.00 charge pipe outlet
Turbine: .91 A/R Twin Scroll, with 'T4-style', divided entry, and 4.21 v-band discharge.
